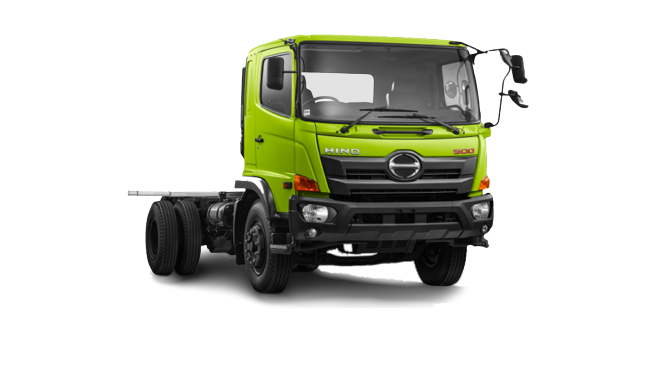

FG 260 JS – Euro4
Kecepatan Maksimum(Km/h)108Daya Tanjak(tan %)48
| Model | – | J08E-WE |
| Model Tipe | – | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | (PS/rpm) | 265/2.500 |
| Daya maksimum | (Kgm/rpm) | 82/1.500 |
| Jumlah silinder | – | 6 |
| Diameter x Langkah Piston | (mm) | 116 x 130 |
| Isi Silinder | (cc) | 7,684 |
| Tipe | – | Pelat Kering Tunggal, dengan Coil Spring |
| Diameter Cakram | (mm) | 385 |
| Tipe | – | MX07 |
| Ke-1 | – | 7,305 |
| Ke-2 | – | 4736 |
| Ke-3 | – | 2738 |
| Ke-4 | – | 1651 |
| Ke-5 | – | 1000 |
| Ke-6 | – | 0,787 |
| Ke-7 | – | 0,649 |
| Mundur | – | 7839 |
| Tipe | – | Integral Power Steering |
| Minimal Radius Putar | (mm) | 10,3 |
|
| Rem Utama | – | Full Air dengan Sirkuit Ganda |
| Rem Pelambat | – | Terletak pada Pipa Gas Buang |
| Rem Parkir | – | Spring Brake |
| Ukuran Rim | – | 20X7.50V-165 | |
| Ukuran Ban | – |
| |
| Jumlah Ban | – | 6 + 1(Cadangan) |
| Accu | (V-Ah) | 12V-65AH×2 |
| Kapasitas | liter | 200 |
| Jarak Sumbu Roda | (mm) | 6.130 |
| Total Panjang | (mm) | 10.600 |
| Total Lebar | (mm) | 2.490 |
| Total Tinggi | (mm) | 2.750 |
| Lebar Jejak Depan | (mm) | 2.050 |
| Lebar Jejak Belakang | (mm) | 1.835 |
| Julur Depan | (mm) | 1.280 |
| Julur Belakang | (mm) | 3.190 |
| Kabin Kesumbu Roda Belakang | (mm) | 5.300 |
| Depan & Belakang | (-) |
|
| Berat Kosong | (kg) |
| |
| Berat Total Kendaraan | (kg) | 16.000 |
